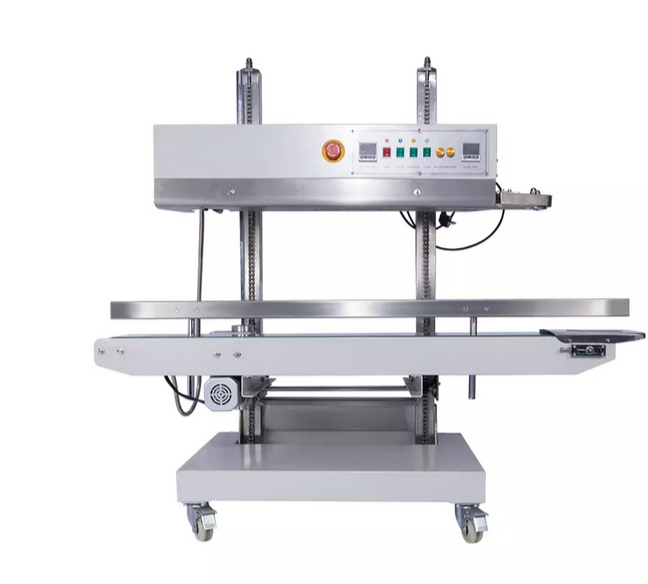

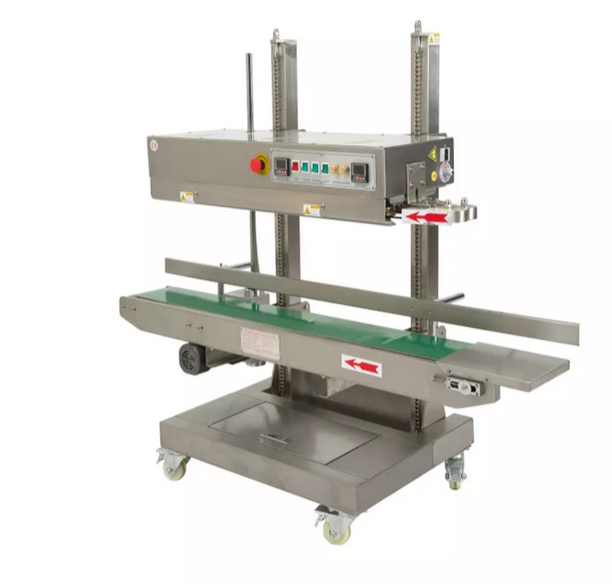

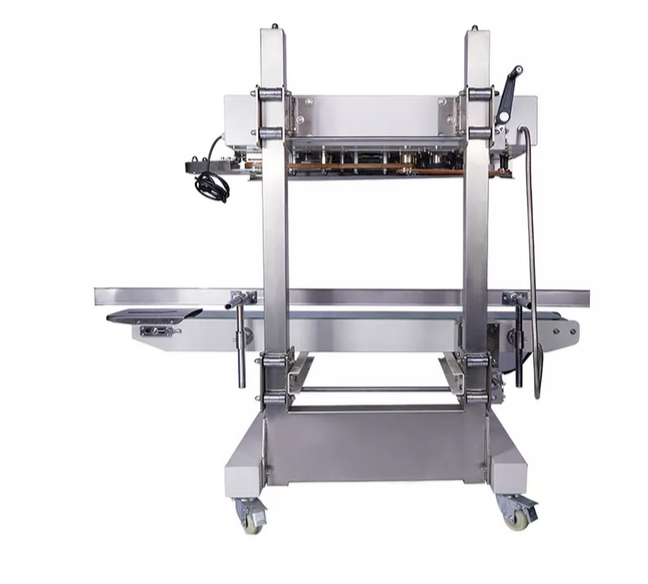

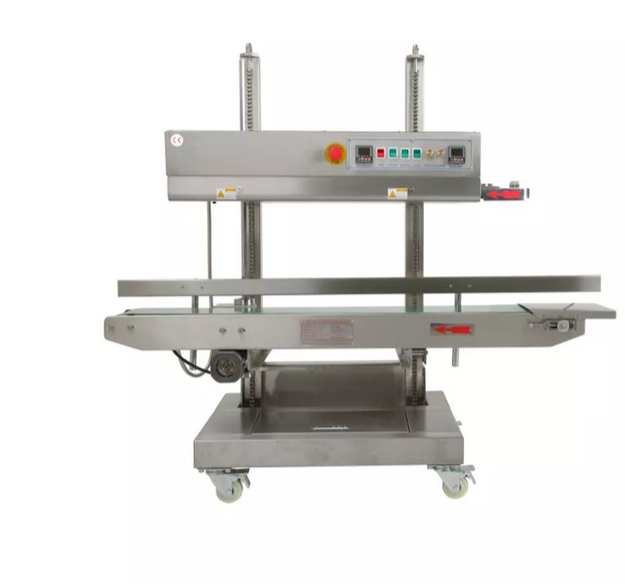

Continuous Heat Sealer - 1100mm (Stainless Steel - Vertical)
Continuous Heat Sealer - 1100mm (Stainless Steel - Vertical)
The PSC-1100V is a professional vertical continuous band sealer, designed for large pre-made, single or multi-layer plastic bags that are sealed standing up. It is ideal for powder, liquid, or solid products that would spill if sealed lying flat.
It is manufactured in stainless steel and is equipped with a height-adjustable integrated conveyor belt. The speed of this conveyor is synchronized to the sealing unit. Easy to operate control panel to set the seal temperature, printer temperature and the conveyor speed.
The sealer is floor standing and comes with lockable caster wheels. A bag is fed in to the PSC 1100V from the right hand side and it will travel on the conveyor at the pre-set speed through the machine exiting on the left hand side.
Technical Specification
Power | 240Volt AC 750W |
Seal Speed | Variable up to 12 m/min |
Seal Width | 10 mm |
Temperature Range | 0 – 300 °C |
Bag length / height | 150 – 600mm |
Conveyor loading | 15kg max |
Dimensions | 1550 x 600 x 1360 |
Weight | 125kg |
